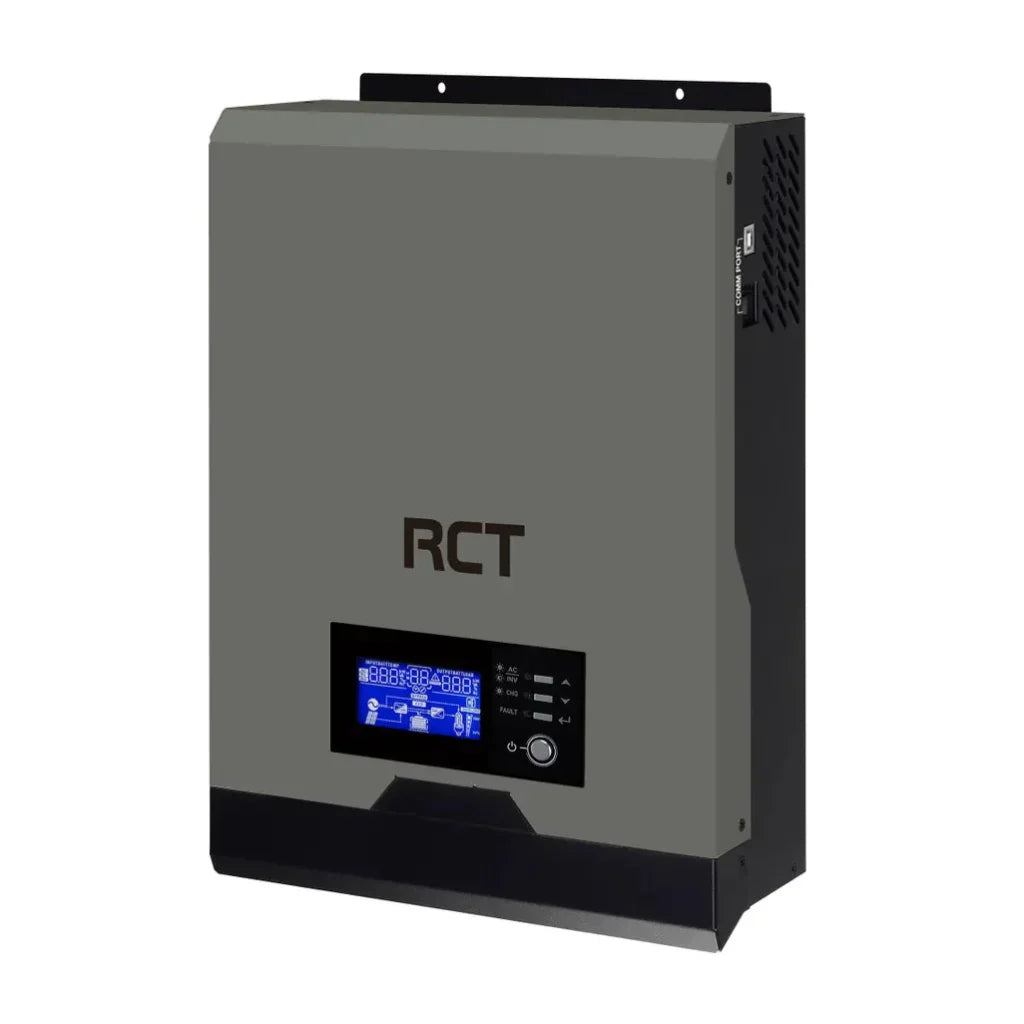

RCT Axpert VM 1K12 1kVA 1kW 12V Hybrid Inverter

Features:

• Cold start function.
• Pure sine wave inverter.
• Auto restart while AC is recovering.
• Built-in MPPT solar charge controller.
• Overload and short circuit protection.
• Compatible to mains voltage or generator power.
• Selectable charging current based on applications.
• Configurable AC/Solar input priority via LCD setting.
• Smart battery charger design for optimized battery performance.
• Selectable input voltage range for home appliances and personal computers.

Technical specifications:

• Model: RCT-AXPERT 1K.
• Rated Power: 1000VA/1000W.
• Warranty: 24 months

Input

• Voltage: 230VAC.
• Selectable Voltage Range: 170-280VAC(For Personal Computers) 90-280VAC (For Home Appliances).
• Frequency Range: 50Hz/60Hz(Auto sensing).

Output

• AC Voltage Regulation: 230VAC ± 5%.
• Surge Power: 2000VA.
• Efficiency(Peak): 90%-93%.
• Transfer Time: 10 ms (For Personal Computers) 20 ms (For Home Appliances).
• Waveform: Pure sine wave.

Battery and AC Charger

• Battery Voltage: 12VDC.
• Floating Charge Voltage: 13.5VDC.
• Overcharge Protection: 16VDC.

Solar Charger

• Maximum PV Array Power: 500W.
• MPPT Range @ Operating Voltage: 17VDC – 80VDC.
• Maximum PV Array Open Circuit Voltage: 102VDC.
• Maximum Solar Charge Current: 40A.
• Maximum AC Charge Current: 25A.
• Maximum Charge Current: 60A.

Physical

• Dimesion: 88mm x 225mm x 320mm.
• Weight: 4.4kg.

Operating Environment

• Humidity: 5% to 95% Relative Humidity(Non-condensing).
• Operating Temperature: -0°C – 55°C.
• Storage Temperature: -15°C – 60°C.
